DIY Green Wall Installation Guide

Thank you for choosing Evergreen Walls as your preferred artificial greenery provider. Below is a guide on how to appropriately install our Classic and Best Sellers range of green walls. For the Premium green wall installation guide please contact us.

If you do not wish to install your greenery yourself, one of our friendly and qualified Australia-wide installers can do all the work for you.

Get a Free Quote
Download Install Guide

Before you Install your Green Wall

Site Survey

To ensure a successful and tailored installation, we recommend conducting a thorough site survey. Assess your location and gather essential information which will assist in your green wall installation

If you do not wish to install your greenery yourself, one of our friendly and qualified Australia-wide installers can do all the work for you.

Request an Install Quote

Site Survey Checklist

Location Assessment

Evaluate the chosen location for the green wall, note if you require a UV artificial green wall for outdoors

Assess the structural integrity of the wall where the artificial green wall is to be installed. Ensure the wall can support the weight and anchoring requirements

Site Access

Check how hard the area is to get to:

Low Level
You able to reach the site with no equipment

Mid Level
You will need a step ladder / platform to reach the area

High Level
You will require scaffolding or professional access equipment to reach the site

Surface Material

Site surface material:

What material will green wall will be fixed to? See installation methods above for further info.

* If fixing to a boundary wall, enquire about the terms with your neighbour
*If installing in a rental property, enquire with your landlord

Potential Hazards

Ensure you check any services affecting the site i.e. electricity, water, gas, piping (this also includes any signage that will be installed in or around the green wall)

Prepare Your Wall

We strongly recommend painting your wall black for the best finish. This isn’t compulsory, but it will improve the finish of your green wall.

Installation Methods

The installation method will be slightly different depending on the site surface material. Please ensure you use the correct method to achieve the best outcome for long lasting green walls. Please note that you will require atape measure, spirit level, pencil, sharp scissors, drill, raw plugs, screws, and/or cable ties for installation.

Gyprock/Plasterboard

​Using the pre-made holes on each corner of the green wall panel, screw​ ​directly​ ​into​ ​the​ ​wall​ ​using​ ​a 20mm​ ​screw

Timber​​

Using the pre-made holes on the green wall panel, ​screw directly into the wall using ​timber​ ​screws​ with a larger head ​for more​ ​coverage and security

Stone​ ​wall

Using the pre-made holes on the green wall panel as a guide, pre-drill a hole in each corner and secure the panel by hammering in nylon​ ​nail​ ​plugs.​​ ​​Alternatively​ ​pre​ ​drill​ ​a​ ​hole, and secure with ​a​ ​plastic​ ​plug​ ​and​ ​screw

Concrete​​

Using the pre-made holes on the green wall panel as a guide, pre-drill a hole in each corner and secure the panel by hammering in nylon​ ​nail​ ​plugs.​ ​If​ ​do not wish to drill into the wall, ​using glue, clad​ ​the wall​ ​with​ ​plywood​ ​and​ secure the green wall ​using ​timber​ ​screws

Wire​ ​fence​

Simply use strong​ ​black​ ​cable​ ​ties​ ​to​ ​hold​ ​in​ ​place

Colorbond​ ​Fence​​

Using the pre-made holes on the green wall panel, screw​ ​directly​ ​into fence using​ ​metal​ ​screws.​ ​If​ exposed​ ​screws​ ​on​ ​the​ ​other​ ​side are undesirable,​ ​pre-drill​ ​two​ ​holes​ for each corner ​in​ ​the​ ​fence​ ​and use​ ​black​ ​cable​ ​ties​ ​to​ secure the green wall panels.​ ​If​ ​this​ ​also​ ​isn’t​ ​an​ ​option​ ​we recommend​ ​making​ ​a​ ​timber​ ​frame​ ​for​ ​the ​panels​ ​to​ ​be​ ​mounted​ ​on​ ​to

How to Guide

Step 1

Measure & Mark Up

Using a spirit level, mark each line for fixing points across the top of the wall.

Start at the top and go left to right or right to left to avoid any gaps and unnecessary offcuts.

Step 2

Secure First Panel

Screw/plug your first panel in each corner using the guideline, ensuring the greenery on the panel is facing upwards.

Step 3

Secure the Second Panel

Plug and screw the Evergreen Fixing, use four per panel. For even foliage, ensure the second panel is between 1cm and 3cm of the first panels fixing hole for seamless greenery coverage. Too close together will bunch the foliage creating a line, too far apart and the wall will be visible.

Step 4

Secure the Remaining Panels

Continue this process ensuring you alternate panels to avoid repeating patterns.

*tip - each box of green wall panels have slight variation in greenery placement for a seamless green wall.

Towards the end you may need to cut the panels to fit the wall. All panels are modular meaning each panel is made up of smaller panels for easier modification. If possible, cut along the lines using a sharp pair of scissors.

Step 5

Ruffle & Enjoy

Ruffle the foliage and add any extra stems as desired. If your green wall is outdoors, consider using cable ties to secure the stems.

We encourage you to take before and after photos and tag us #evergreenwalls on our social channels. Our team would love to see your handy work and feature your projects online!

STEP 6

Unfurl

Ruffle the foliage and add any extra stems as desired. If your green wall is outdoors, consider using cable ties to secure the stems. To view our additional stem options visit here.

We encourage you to take before and after photos. Our team would love to see your handy work and feature your projects online. Feel free to send your pictures to info@evergreenwalls.com.au

Download Print Version

Before & After

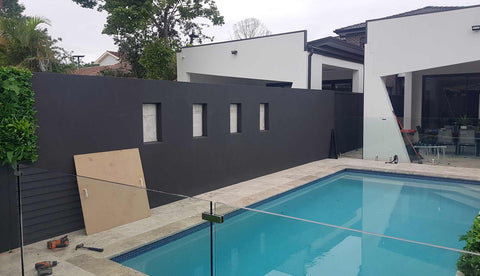

Before

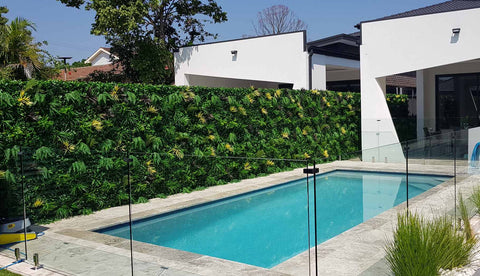

After
